GRANTURISMO 14.0Lomac
Capacity
16
Length
13.70 m
Width
4.15 m
Description
The GranTurismo line is the culmination of three years of research and development work to achieve the perfect balance between design, comfort and performance. It is the most exclusive family of boats in the Lomac range, not least in terms of attention to detail, choice of materials and personalisation options, and features hulls optimised by CFD modeling, vacuum infusion lamination with vinyl ester resin, neopentyl gelcoat, aramid fibers to reinforce the T-top, deck and hull, and 100% ‘Made in Milan’ design by Federico Fiorentino. A maxi-rib that’s also the ideal luxury tender. Unbeatable
STANDARD EQUIPMENT

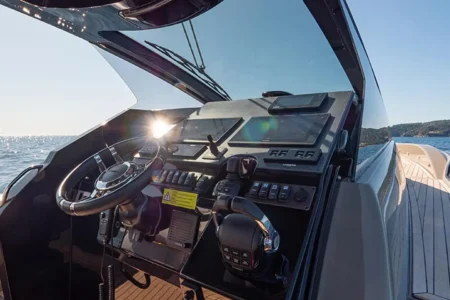

- steering console with windshield and stainless steel trim, sliding cabin door with lock, side windows, navigation lights
- steering wheel with sewn skay by hand, compass and horn
- instrument panel console with 17 switches and fuses, 12 volt external socket

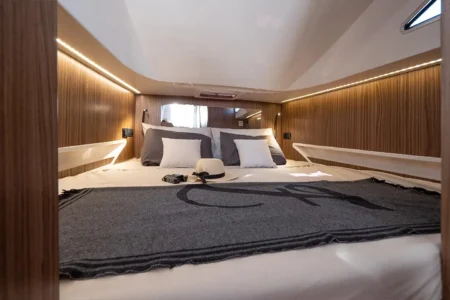

- cabin with 2 beds complete with ergonomic mattress, American walnut furniture, smoke detection system, glove compartment, two adjustable LED lamps, 12 V and 220 V sockets, porthole, glove storage , electrical panel placed inside of the cabinet, teak floor, ceiling light-touch

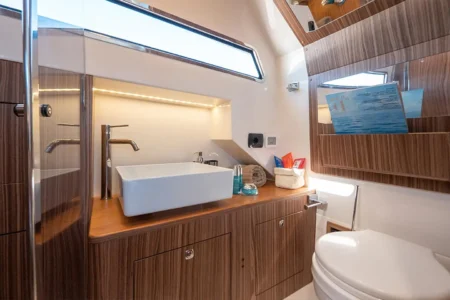

- separate bathroom with sink and mixer hot and cold water, wall mirror, porthole, separate shower with hot and cold water mixer, foldable door, teak grating, walnut furniture with carved wood of bamboo, electric toilet with black water tank 80l
- courtesy lights in the cabin, aft platforms, in dinettes area, on the steps and in the bow and stern locker, both complete with actuators;
- electric windlass with doble controls (on the console and on bow) inox anchor 20 kg. and 50 mt. chain diam. 8 mm
- outdoor shower with water tank 170 liters, arrangement cold and hot water, autoclave with level control
- stainless steel tank 1000 lt installed in compliance with probe and fuel filters with petrol taps
- chest for storage of parasol awning with lifting assistance through pneumatic cylinders

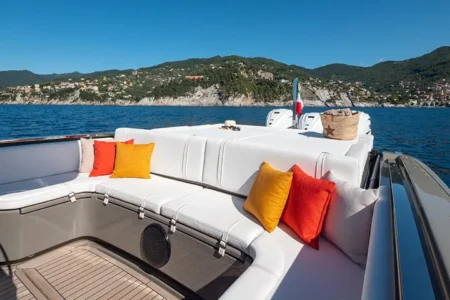

- full front and rear cushions, driver seat and passenger with lumbar cushion for standing driving
- pilot and co-pilot seat, with stainless steel refrigerator 12 V. lt. 75 integrated
- hidden inox ladder with retractable handle, 3 towing rings and belts 4 mooring cleats + 4 lifting rings
- oars or paddle, manual inflation pump, repair kit, electric inflation pump and manometer
- sink integrated in driving seat
- 4 battery system complete with diverters and charge divider
- stern table with electrical support and control on the console
- cockpit in teak wood
ACCESSORIES
- built-in steel drawer refrigerator 12 V lt. 95, (for difference)
- built-in steel refrigerator 12 V 182 lt 2 drawers (104 L refrigerator + 78L freezer) for difference
- built-in steel refrigerator 12 V 182 lt 2 drawers (104 L refrigerator + 78L refrigerator) for difference
- * built-in steel refrigerator 220 V 182 lt 2 drawers (fridge 104 L + freezer and ice maker 78L) for difference
- fiberglass hard top, complete with windscreen wiper and anti-scratch brush
- front mooring system in the windlass locker
- 12 V boiler
- 220 V boiler
- steel bow handle to go back
- GARMIN Camera for hard top inspection on GPS display
- GARMIN Camera for bow chain storage on GPS display
- VHF GARMIN 315i with antenna
- radio FM-AM Fusion MS RA 70N with Bluetooth, 4 speakers 200 Watts and antenna
- radio FM-AM Fusion MS RA 770 Apollo 4 speakers 260 Watts and antenna
- radio FM-AM Fusion MS RA 770 Apollo 4 speakers 260 Watts + 2 Tweeter + amplifier 1.600 Watts and antenna
- DAB
- multi-source Touch package: MS-RA 770 radio, with MS-SRX 400 cabin radio with 6 speakers, subwoofer and amplifier, this system has the possibility of having a separate audio source so making the cab independent. It is equipped with WiFi for use of Fusion Link and Bluetooth for audio streaming independent of the zone external, it also has the ability to listen to the same audio source of the 770 so creating the party mode function
- GARMIN GPSMAP 8410 xsv worldwide + fishfinder and sonda with NMEA
- GARMIN GPSMAP 8410 xsv worldwide + fishfinder and sonda without NMEA
- GPSMAP GARMIN 1222xsvdisplay 12″color Touchscreen + fishfinder + transducers without NMEA
- GPSMAP GARMIN 1222xsvdisplay 12″color Touchscreen + fishfinder + transducers with NMEA
- chain counter instrument
- bow propeller 40 kgf
- towing rod
- multifunction pole (flag holder, hand shower and towing rod)
- metallic paint option for consolle and driving seat
- * complete air conditioning with adjustable thermostat and air vents in the cabin and bathroom
- marine diesel electrical generator – single phase 230V – 50hz – 3000 rpm – complete with soundproof painted aluminum protection and remote starter panel with 10m connection cable
- carbon gangway
- * induction hobs
- dashboard cover
- back cushions cover
- back seat cover
- driver’s seat cover
- 2 underwater lights bicolor white and blue
- bow depth beacon
- additional telescopic ladder with lifting handles
- kit for additional battery system
* the installation is recommended only if it is associated with the generator option
Specification
Dry weight
5800 kg
Tube
classic style
Tube diameter
72 cm
Hull
twinshell
Number of air chambers
8
Working press bar (atm)
0.20
Transom height (mm.)
2x635 - 1x762
Suggested power (Hp.)
3x300
