Available Now

CONSTRUCTION

Semi displacement hull built in mixed Glass + Carbon Fire Reinforced Plastic

GENERAL

• Builder: WIDER srI
• Length (L.O.A.): 28.04 m (92′ 0″) approx
• Beam: 12.00 m (39′ 4″) approx
• Draft (Full Displacement): 1.65 m (5’5″) approx
• Hull and Superstructure: GRP + CRP
• Displacement full load: 113.5 tons approx
• Gross Tonnage: 242 GT
• Designer: Luca Dini Design

TANK CAPACITIES

• Fuel: 2x 7.500 L – 2x 1.980 US gal
• Fresh Water: 2x 1.440 L – 2x 380 US gal

SPEED/RANGE

• An Shaft with twin screw props with Wider Serial Hybrid system allows, in trial condition, a range up to 2.400 nm at 8 knots
• Maximum speed (Electric Boost): 14 knots
• Cruising speed: 12 knots / Range nm: 900 approx
• Economical Speed: 8 knots / Range nm: »2.400 approx
• ZEM: up to 6 knots / Range nm: 4.5 hours at 6 knots approx
• At Anchor: 12 hours
• Battery Bank: 360 kW available

PROPULSION

• Type of propulsion: e shaft with twin screw props
• Propulsion motors: 2 x 500 kW Danfoss Editron PM Motor
• Gen Set (Variable Speed): 2 x 349 kW FPT N67 + Danfoss Editron

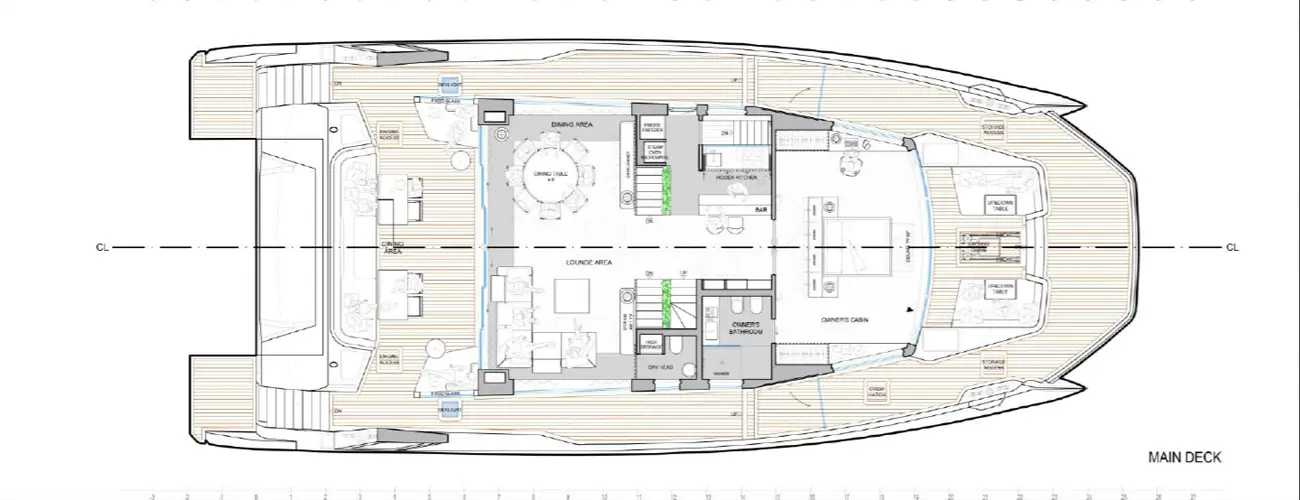

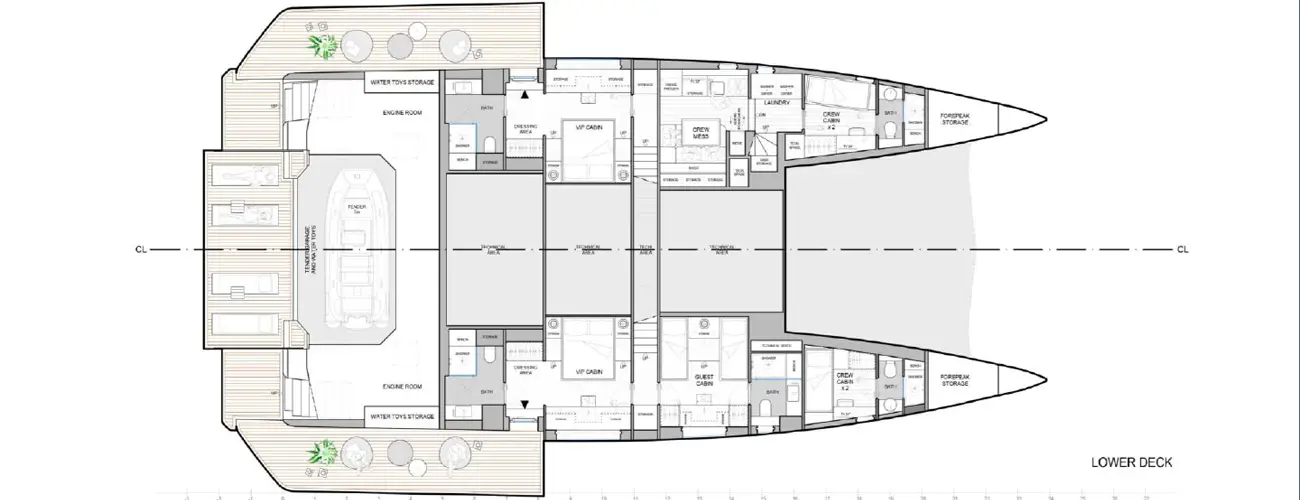

ACCOMMODATION

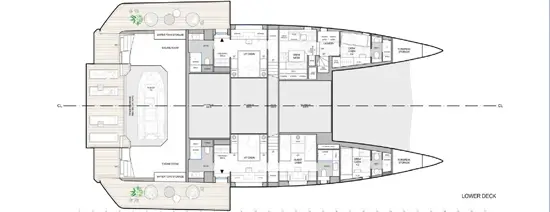

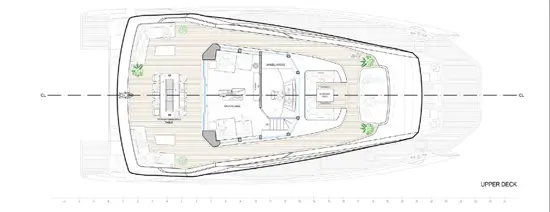

• Accommodation for: 8 Guests + 4 Crew Members

Charter Management: Available
